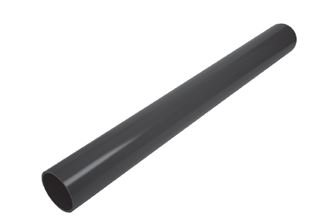

צינורות מריפלקס PE100

צינורות מריפלקס PE100לפתיחת גלריה בחלון ודיפדוף פנימי

שימושים: מים ושפכים בלחץ
חומר: PE100
תקנים: ת"י 4427, ISO4427, EN12201
קטרים: 16 עד 1200 מ"מ
לחצים: 4 עד 20 בר
אורכים: 8מ', 14מ, 50מ', 100מ', תופי ענק
צבע: שחור
חיבורים: ריתוך חשמלי, ריתוך פנים, מכני

לפתיחת גלריה בחלון ודיפדוף פנימי

מאפייני מוצר

מק"ט קוטר (מ"מ) PN bar RS (kN/m2) SDR ע"ד (מ"מ)
1816073000 160 6 5.3 26 6.2
1818073000 180 6 5.3 26 6.9
1820073000 200 6 5.3 26 7.7
1822573000 225 6 5.3 26 8.6
1825073000 250 6 5.3 26 9.6
1828073000 280 6 5.3 26 10.7
1831573000 315 6 5.3 26 12.1
1835573000 355 6 5.3 26 13.6
1840073000 400 6 5.3 26 15.3
1845073000 450 6 5.3 26 17.2
1850073000 500 6 5.3 26 19.1
1856073000 560 6 5.3 26 21.4
1863073000 630 6 5.3 26 24.1
1871073000 710 6 5.3 26 27.2
1880073000 800 6 5.3 26 30.6
1890073000 900 6 5.3 26 34.4
1810X73000 1000 6 5.3 26 38.2
1812X73000 1200 6 5.3 26 45.9
1816074000 160 8 10.4 21 7.7
1813074000 180 8 10.4 21 8.6
1820074000 200 8 10.4 21 9.6
1822574000 225 8 10.4 21 10.8
1825074000 250 8 10.4 21 11.9
1828074000 280 8 10.4 21 13.4
1831574000 315 8 10.4 21 15.2
1835574000 355 8 10.4 21 16.9
1840074000 400 8 10.4 21 19.1
1845074000 450 8 10.4 21 21.5
1850074000 500 8 10.4 21 23.9
1856074000 560 8 10.4 21 26.7
1863074000 630 8 10.4 21 30
1871074000 710 8 10.4 21 33.9
1880074000 800 8 10.4 21 38.1
1890074000 900 8 10.4 21 42.9
1810X74000 1000 8 10.4 21 47.7
1812X74000 1200 8 10.4 21 57.2
1302075000 20 10 20.3 17 2
1302575000 25 10 20.3 17 2.3
1303275000 32 10 20.3 17 2
1304075000 40 10 20.3 17 2.4
1305075000 50 10 20.3 17 3
1306375000 63 10 20.3 17 3.8
1307575000 75 10 20.3 17 4.5
1309075000 90 10 20.3 17 5.4
1311075000 110 10 20.3 17 6.6
1312575000 125 10 20.3 17 7.4
1314075000 140 10 20.3 17 8.3
1316075000 160 10 20.3 17 9.5
1313075000 180 10 20.3 17 10.7
1320075000 200 10 20.3 17 11.9
1322575000 225 10 20.3 17 13.4
1325075000 250 10 20.3 17 14.8
1328075000 280 10 20.3 17 16.6
1331575000 315 10 20.3 17 18.7
1335575000 355 10 20.3 17 21.1
1340075000 400 10 20.3 17 23.7
1345075000 450 10 20.3 17 26.7
1350075000 500 10 20.3 17 29.7
1356075000 560 10 20.3 17 33.2
1363075000 630 10 20.3 17 37.4
1371075000 710 10 20.3 17 42.1
1380075000 800 10 20.3 17 47.4
1390075000 900 10 20.3 17 53.3
1310X75000 1000 10 20.3 17 59.3
1312X75000 1200 10 20.3 17 67.9
1306376000 63 12.5 41.7 13.6 4.7
1307576000 75 12.5 41.7 13.6 5.6
1309076000 90 12.5 41.7 13.6 6.7
1311076000 110 12.5 41.7 13.6 8.1
1312576000 125 12.5 41.7 13.6 9.2
1314076000 140 12.5 41.7 13.6 10.3
1316076000 160 12.5 41.7 13.6 11.8
1313076000 180 12.5 41.7 13.6 13.3
1320076000 200 12.5 41.7 13.6 14.7
1322576000 225 12.5 41.7 13.6 16.6
1325076000 250 12.5 41.7 13.6 18.4
1328076000 280 12.5 41.7 13.6 20.6
1331576000 315 12.5 41.7 13.6 23.2
1335576000 355 12.5 41.7 13.6 26.1
1340076000 400 12.5 41.7 13.6 29.4
1345076000 450 12.5 41.7 13.6 33.1
1350076000 500 12.5 41.7 13.6 36.8
1356076000 560 12.5 41.7 13.6 41.2
1363076000 630 12.5 41.7 13.6 46.3
1371076000 710 12.5 41.7 13.6 52.2
1380076000 800 12.5 41.7 13.6 58.8
1390076000 900 12.5 41.7 13.6 66.2
1301677000 16 16 83.3 11 2
1302077000 20 16 83.3 11 2.3
1302577000 25 16 83.3 11 2.3
1303277000 32 16 83.3 11 3
1304077000 40 16 83.3 11 3.7
1305077000 50 16 83.3 11 4.6
1306377000 63 16 83.3 11 5.8
1307577000 75 16 83.3 11 6.6
1309077000 90 16 83.3 11 8.2
1311077000 110 16 83.3 11 10
1312577000 125 16 83.3 11 11.4
1314077000 140 16 83.3 11 12.7
1316077000 160 16 83.3 11 14.6
1313077000 180 16 83.3 11 16.4
1320077000 200 16 83.3 11 18.2
1322577000 225 16 83.3 11 20.5
1325077000 250 16 83.3 11 22.7
1328077000 280 16 83.3 11 25.4
1331577000 315 16 83.3 11 28.6
1335577000 355 16 83.3 11 32.3
1340077000 400 16 83.3 11 36.3
1345077000 450 16 83.3 11 40.9
1350077000 500 16 83.3 11 45.4
1356077000 560 16 83.3 11 50.8
1363077000 630 16 83.3 11 57.2
1371077000 710 16 83.3 11 64.5
1303278000 32 20 162.8 9 3
1304078000 40 20 162.8 9 3.7
1305078000 50 20 162.8 9 4.6
1306378000 63 20 162.8 9 5.8
1307578000 75 20 162.8 9 6.6
1309078000 90 20 162.8 9 8.2
1311078000 110 20 162.8 9 10
1312578000 125 20 162.8 9 11.4
1314078000 140 20 162.8 9 12.7
1316078000 160 20 162.8 9 14.6
1313078000 180 20 162.8 9 16.4
1320078000 200 20 162.8 9 18.2
1322578000 225 20 162.8 9 20.5
1325078000 250 20 162.8 9 22.7
1328078000 280 20 162.8 9 25.4
1331578000 315 20 162.8 9 28.6
1335578000 355 20 162.8 9 32.3
1340078000 400 20 162.8 9 36.3
1345078000 450 20 162.8 9 40.9
1350078000 500 20 162.8 9 45.4
